Santa Monica M
- Buy 2 eBikes, Get $200 OFF! Double the ride. Double the fun. Save $200 today! Code THUNDERTWO
- Fully assembled, available for pickup and delivery.

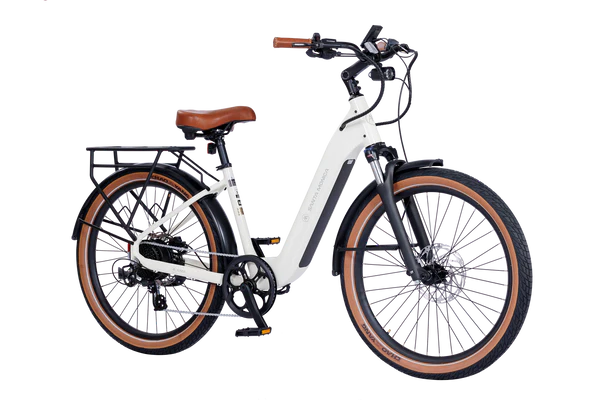

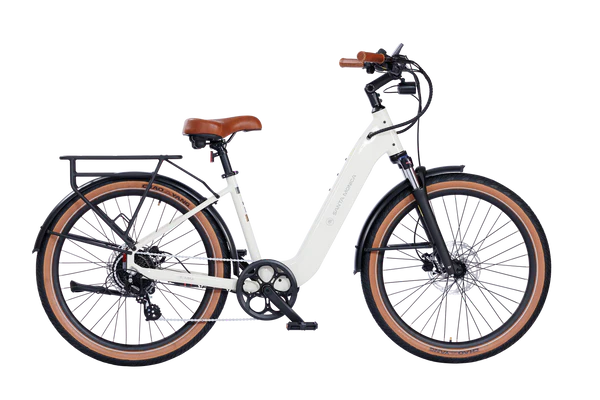

The Santa Monica E-Bike is one of the most innovative bike on the market with its sleek design and navigation features. Powered by a reliable Bafang rear hub motor and a long-lasting 720Wh battery, it delivers performance and safety. Its adjustable, relaxed position makes it a great choice for riders seeking comfort and performance. A full UL2849 certification over the electric system guarantees the highest safety standard. The Santa Monica is your best choice for roaming around in a stylish way and peace of mind.
Features & Benefit
- Unique Lightweight Step-Thru Aluminum frame with integral Smooth Welding
- Comfortable and Stable Handling thanks to an adjustable position and a geometry that's laterally stiff yet compliant vertically
- Oversized Head Tube Bearings coupled with a Suspension fork using a Thru-Axle provides smooth, efficient and predictable braking
- Reliable Pedal Assist System, provided by Bafang
- Powerful Rear Hub Motor, 48V, 500W, Max Torque 70Nm
- High capacity Lithium-ion Battery, 48V, 15Ah (720Wh)
- Torque Sensor
- Integrated Driving Lights & Blinkers Turn Signals
- Shimano Drivetrain
- Tektro E-Brakes, Hydraulic, 203mm Rotors
- Full Length Fenders included
Front Suspension with Thru Axle
Santa Monica assures you a much more comfortable ride with a 27.5”SR Suntours front suspension with thru axel
Hydraulic Brake System
Santa Monica is outfitted with Tektro hydraulic disc brakes and industry-leading 203mm rotors, ensuring smooth and safe braking. With this advanced braking system, riders experience enhanced control and confidence on every journey.
Integrated Turn Signal Light with Sound
Santa Monica is the first AIMA ebike model with integrated turn signal light and sound. When you turn or change lanes, the rear lights integrated in the frame will double with a clear notification sound communicating to surrounding vehicles or passengers.
Torque Sensor
One of the latest e-bike innovations, a torque sensor sees how hard you pedal in real time and matches your input power using the motor. This leads to a safer and more intuitive ride, as well as conserving battery life.
Flat Position Welding
We've taken great care and utilized some of the newest aluminum welding techniques available on our frame, which comes with a lifetime warranty. These techniques allow the frame to maintain its structural rigidity while also appearing flat and smooth.
Customized Big Saddle
Specially customized 280mm x 270mm saddle, with unique vintage vibe design, providing all riders with ultimate comfort.
Bike Specifications
Frame: Unique Lightweight Step-Thru Hydroformed Aluminum alloy frame, Integral Smooth Welding, Internal Cable Routing,Oversized Taper Headtube with integrated bearings, 83mm BSA, Replaceable forged alloy derailleur hanger,Fully Integrated rear Dropouts with LED Rear light / Brake / Turn Signal lights (remotely controled)
Fork: SR Suntour Mobie A32, 75mm travel Suspension Fork, Locking Lever, Spring Preload Adjustment, Oversized Taper Steerer, 100x15mm Thru-Axle
Stem: Forged Alloy, Adjustable Angle, 1-1/8” Threadless, with Integrated Front Light Mount
Handlebar: City Handlebar, Riser, Ø31,8mm, Width: 680mm
Grips: Comfort, Retro Inspired
Seatpost: Alloy, Ø30.4mm Quick Release clamp
Saddle: Comfort Wide Retro Inspired Brown, Tear-Resistant, Integrated Springs and Lifting Handle
Shifters: Shimano Acera ST-M315, Rapidfire, 8 Speeds
Derailleur: Shimano Altus RD-M310, with Protecting Cage
Chainring: Direct Mount, Splined alloy spider, 52T
Cassette: Shimano HG, Megarange 11-34T
Chain: PYC, 1/2” x 3/32”
Pedals: Sure Grip Platform, Alloy, 9/16’’
Brakes: Tektro HD-E3520, Hydraulic Disc Brakes,with Power cut-off sensor
Rotors: Stainless Steel TR-52 Anti Vibration 203mm 6-Bolt rotors
Rims: 27.5’’, 36H, MTB-grade Disc specific double wall profile, Schrader
Hubs: Front: Alloy, 100x15mm Thru-Axle, Sealed Bearings, 6-Bolts Disc MountRear: (See Motor)
Spokes: 13G Stainless Steel, Black
Tires: Chao Yang, 27.5 x 2.6’’, Retro Tan Wall,Reflective Side Strips, E-Bike Rated Casing
Driving Lights: Front: Semi-Integrated white driving light, 600 lumens, Connected to battery Rear: Integrated red driving light / Active braking and Yellow turning signal lights (remotely controlled)
Accessories: SureFix System Full-wrapping Fenders, Direct Mount Alloy E-Bike rated Kickstand
Listed Weight: 64 lbs (29 kg)
Max Payload: 400 lbs (180 kg)
Pedal Assist System
Motor: Bafang G0270 48V Custom Brushless Rear Hub, 500W, 36H*13G
Battery: Bafang BT F440, Semi-Integrated, 720Wh Capatity Lithium-ion, High Performance LG cells
Display: Bafang DP C271.CAN New Generation Smart Color Backlit LCD, G5.4, IP65 Connector
Sensor: Bafang SR PA242 Torque Sensor, JIS Bottom Bracket, BSA External Cups
Throttle: On Demand Thumb Press Button
Controls: Left Side: Power / PAS level / Driving Lights Right Side: Blinkers Turn Signal Lights / Electronic Horn
Charger: AIMA 48V Fast Charge
Geometry
| Small | Medium | |||
| metric | inch | metric | inch | |
| Recommended Rider's Height | 144-170 cm | 4'9-5'7 | 170cm + | 5'7 + |
| Standover Height | 394 mm | 15,5" | 394 mm | 15,5" |
| Saddle to Ground Height (Min.) | 77 cm | 30,3" | 82 cm | 32,3" |
| Saddle to Ground Height (Max.) | 96 cm | 37,7" | 100 cm | 39,6" |
| Frame Size | 406 mm | 16" | 457 mm | 18" |
| Head Tube Length | 170 mm | 6,7" | 170 mm | 6,7" |
| Effective Top Tube | 635 mm | 25" | 635 mm | 25" |
| Reach | 422 mm | 16,6" | 422 mm | 16,6" |
| Stack | 655 mm | 25,8" | 655 mm | 25,8" |
| Head Tube Angle | 67,5 | 67,5 | 67,5 | 67,5 |
| Seat Tube Angle | 72 | 72 | 72 | 72 |
| Wheelbase | 1220 mm | 48" | 1220 mm | 48" |
| Chainstays | 495 mm | 19,5" | 495 mm | 19,5" |
| BB Height | 305 mm | 12" | 305 mm | 12" |
| Small | Medium | |||
| metric | inch | metric | inch | |
| Recommended Rider's Height | 144-170 cm | 4'9-5'7 | 170cm + | 5'7 + |
| Standover Height | 394 mm | 15,5" | 394 mm | 15,5" |
| Saddle to Ground Height (Min.) | 77 cm | 30,3" | 82 cm | 32,3" |
| Saddle to Ground Height (Max.) | 96 cm | 37,7" | 100 cm | 39,6" |
| Frame Size | 406 mm | 16" | 457 mm | 18" |
| Head Tube Length | 170 mm | 6,7" | 170 mm | 6,7" |
| Effective Top Tube | 635 mm | 25" | 635 mm | 25" |
| Reach | 422 mm | 16,6" | 422 mm | 16,6" |
| Stack | 655 mm | 25,8" | 655 mm | 25,8" |
| Head Tube Angle | 67,5 | 67,5 | 67,5 | 67,5 |
| Seat Tube Angle | 72 | 72 | 72 | 72 |
| Wheelbase | 1220 mm | 48" | 1220 mm | 48" |
| Chainstays | 495 mm | 19,5" | 495 mm | 19,5" |
| BB Height | 305 mm | 12" | 305 mm | 12" |
